U-Sewerage Pipe
(IS: 16647)
Application
- U-Sewerage pipes are specifically designed for underground drainage and sewerage networks including:
- Soil and waste discharge systems
- Underground municipal sewer lines
- Residential and commercial drainage networks
- Storm water drainage systems
- Industrial wastewater disposal systems
- Housing and infrastructure development projects

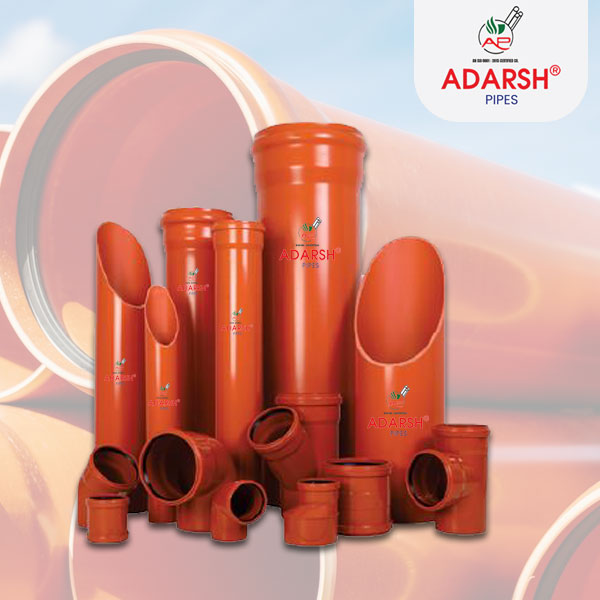

ADARSH Un-plasticized polyvinyl chloride (PVC-U)Underground Sewerage Pipes are made specifically for use in underground drainage & sewerage systems.
These pipes are manufactured as per Specification No IS: 15328:2003 of the Bureau of Indian Standards. These pipes are available in sizes of 90,110, 125, 160, 200, 250 and 315 mm in stiffness class of SN-2, SN-4 & SN-8. These pipes are self-socketed, joined with the help of solvent cement (cold welding) and available in standard length of 6 meters & are brown in color.
Product Range
Pipes: 90 mm to 315 mm of SN-2 (SDR-51), SN-4 (SDR-41) & SN-8 (SDR-34)
Two Special Technical Check Parameters
- Pressure Performance Test : Elastomeric sealing ring type joints are tested for leak proof performance under underground external hydrostatic pressure conditions.
- Leak Tightness & Angular Deflection Test : Elastomeric sealing-ring socket joints are tested for leak tightness under internal (negative) pressure and angular deflection to ensure longterm joint integrity.
Features & Benefits
- Leak proof jointing system
- Long service life
- Anti-rodent resistant
- Lightweight and easy to transport, even in wet site conditions
- Saves time and manpower during installation
- Quick and easy installation in underground applications
- Smooth inner bore reduces friction and minimizes risk of blockage
- Highly resistant to negative pressure and soil load conditions
| WEIGHT CHART FOR U SEWERAGE PIPES: SELF FIT Conforming to IS 15328 |
||||
|---|---|---|---|---|
| Size (mm) | Series (Stiffness Class) | Wall Thickness SDR | Weight (kg/m) | |
| Min | Max | |||
| 90 | SN 2 (SDR 51) | 4.0 | 0.771 | 0.937 |
| 110 | SN 4 (SDR 41) | 3.2 | 0.902 | 1.095 |
| 125 | SN 8 (SDR 34) | 2.5 | 1.077 | 1.309 |
| 200 | SN 2 (SDR 51) | 4.0 | 1.363 | 2.234 |
| 250 | SN 4 (SDR 41) | 3.2 | 1.063 | 1.956 |
| 200 | SN 8 (SDR 34) | 3.5 | 1.063 | 2.234 |
| 250 | SN 2 (SDR 51) | 4.0 | 23.346 | 28.042 |
| 315 | SN 4 (SDR 41) | 6.2 | 23.346 | 28.042 |
| 200 | SN 8 (SDR 34) | 3.2 | 28.139 | 33.614 |
| 250 | SN 8 (SDR 34) | 4.9 | 28.139 | 33.614 |
