Blue Casing Pipes
(IS: 12818)

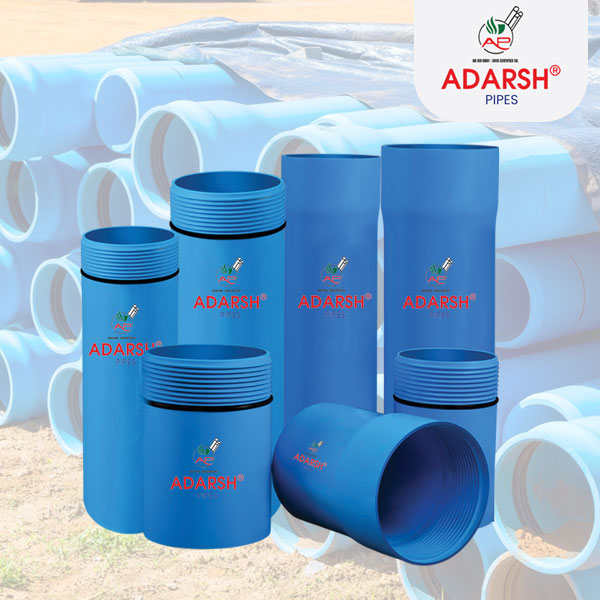

Adarsh Blue casing pipes are used to aid in xtracting clean water from irrigation, indus-
trial, and domestic borewells. Manufactured using high-quality raw materials, these pipes provide excellent strength, durability, and resistance to corrosion.
Features
- Strong double-wall design for high durability
- Corrosion-resistant and leak-proof
- Smooth inner surface for efficient flow
- Lightweight for easy handling and quick installation.
- Cost-effective with a service life over 50 years
Applications:
- Borewell and tube well casing for groundwater extraction
- Protection of submersible pumps and rising mains
- Agricultural irrigation water supply systems
- Industrial water supply and distribution works
- Domestic and commercial water supply boreewells
- Corrosion-free alternative to metal casing pipes
- Suitable for deep and shallow well installations.
| Nominal Diameter (DN) | Mean Outer Diameter (d) of Pipe (in mm) | Wall Thickness (in mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Type - CM | Type - CS | Type - CD | |||||||
| Inch | mm | Min | Max | Min | Max | Min | Max | Min | Max |
| 4 | 100 | 113 | 113.3 | 5 | 5.7 | - | - | 7 | 7.9 |
| 4½ | 115 | 125 | 125.3 | 5 | 5.7 | - | - | 7.5 | 8.5 |
| 5 | 125 | 140 | 140.4 | 6.5 | 7.3 | - | - | 8 | 9 |
| 6 | 150 | 165 | 165.4 | 7.5 | 8.5 | 5.7 | 6.5 | 9.5 | 10.7 |
| 7 | 175 | 200 | 200.5 | 8.8 | 9.8 | 7 | 7.8 | 11.8 | 13.6 |
| 8 | 200 | 225 | 225.5 | 10 | 11.2 | 7.6 | 8.8 | 13 | 14.8 |
| 10 | 250 | 280 | 280.5 | 12.5 | 14 | 9.6 | 11 | 16 | 17.6 |
